CL - Full wrap

For cylindrical cans and pails

Our standard CL with 3 or 4 roller indexers applying full wrap labels or sticker labels onto a can or pail, will be the solution you need.

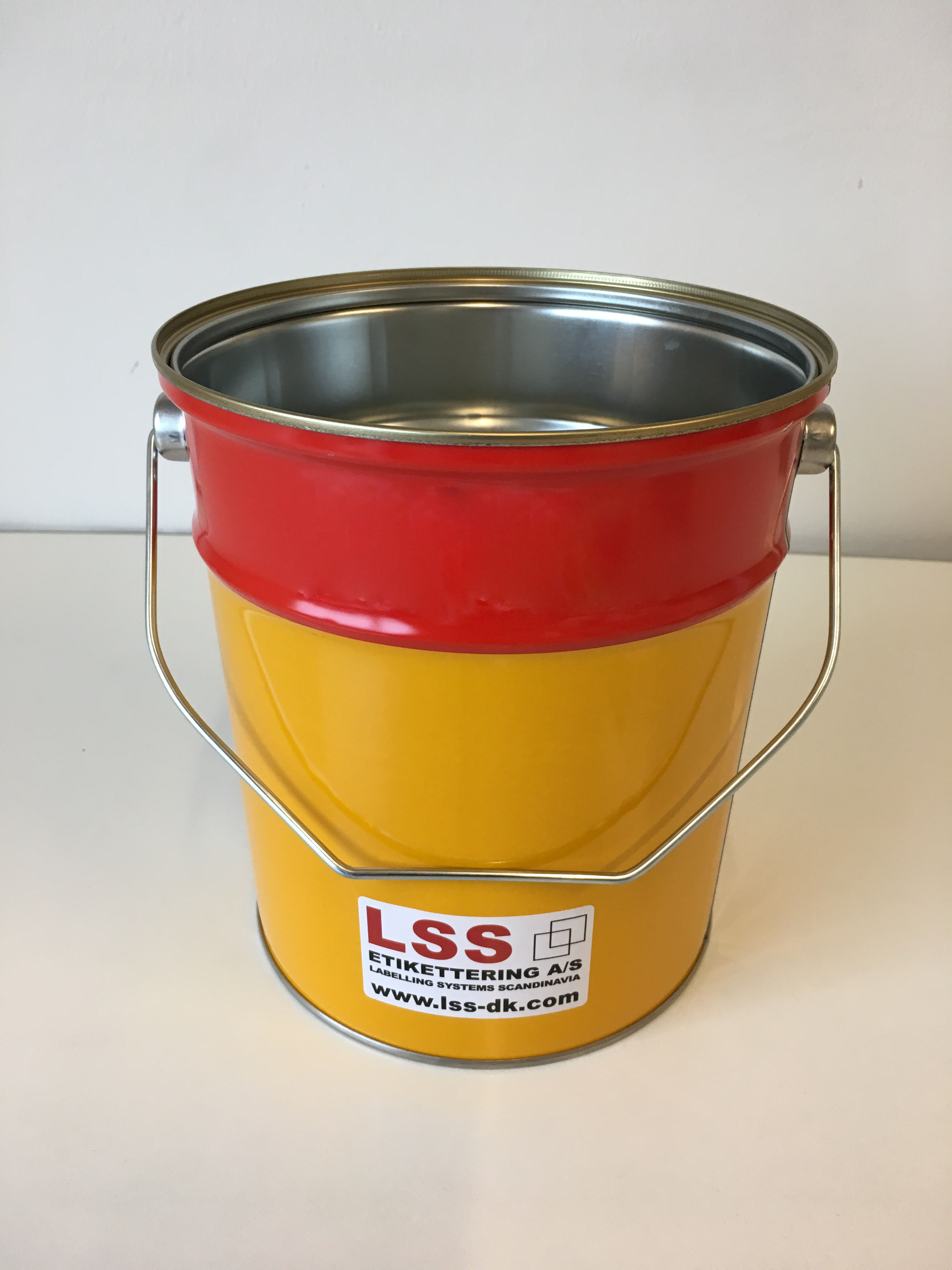

Using two label dispensers allow you to apply a full label and a sticker onto cylindrical products and 2 stickers onto a conical lithographed product.

If required the label dispensers could be equipped with printers for inline colour- or barcode printing.

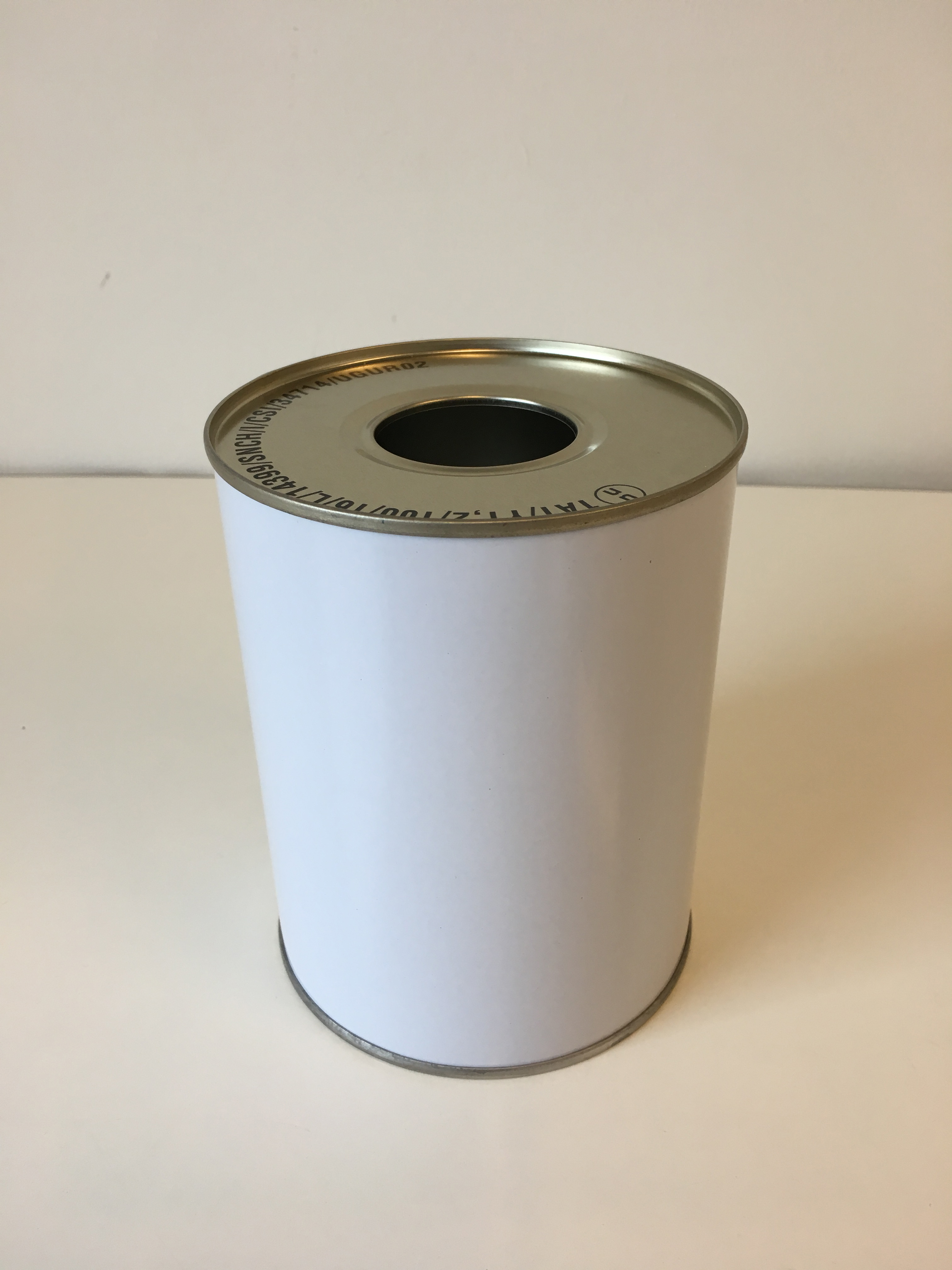

For high output and under the right conditions, pre-indexers enable capacities up to 60 cans per minute. For full wrap labelling of cans less than 1 liter, the capacity is maximum 50 cans per minute, non orientated.

Handle lifting devices are an option and in that sense products could be both with or without handles.

Specifications

Products
Cans, Pails, Containers
Product specifikation
125ml. cans to 10-liter containers
Product material

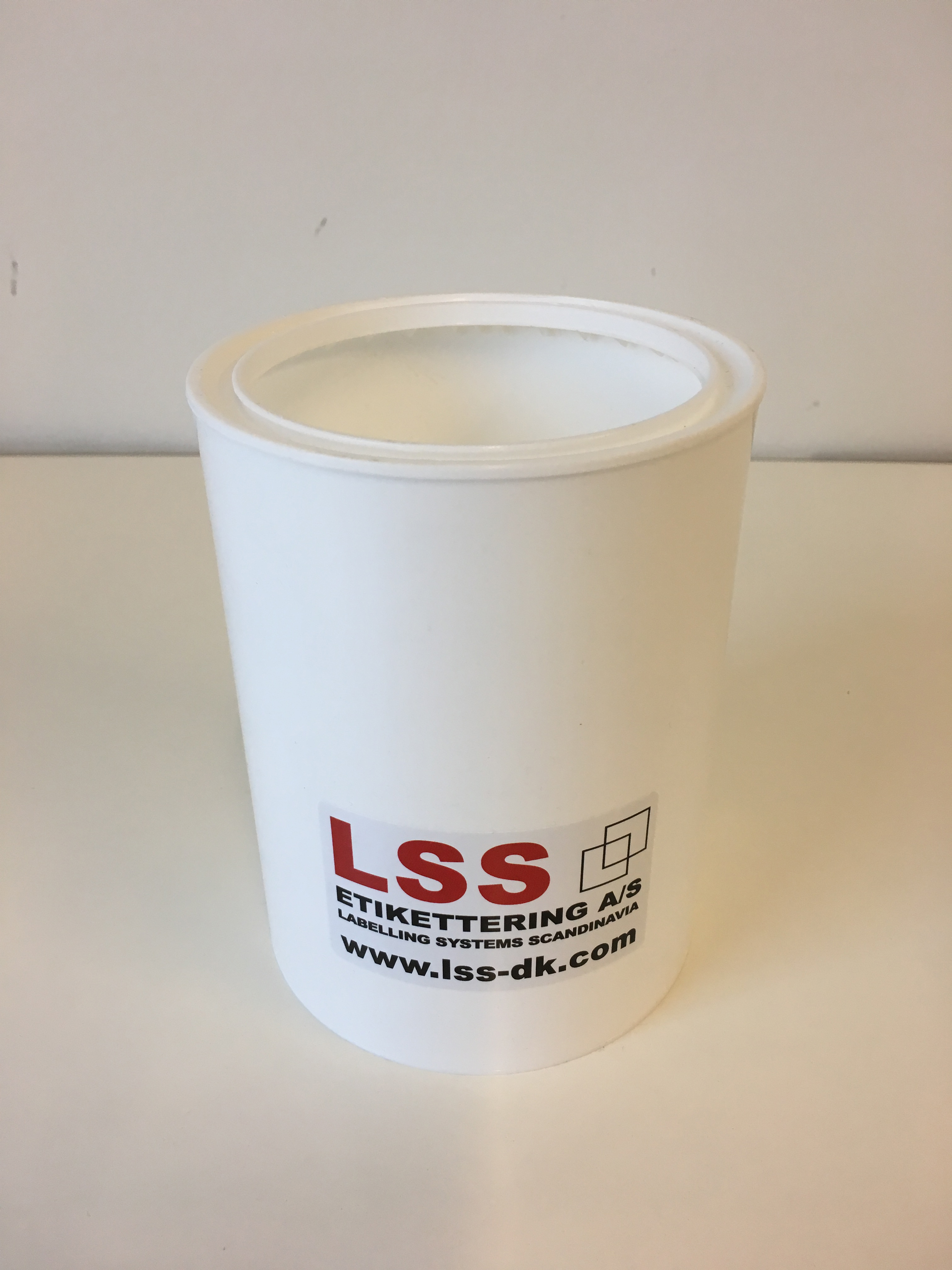

Plastic or metal
Product diameter
ø58mm to ø280mm
Label dimension
Minimum: 22 x 22mm (LxH) Maximum: 400 x 160mm (LxH)
Label placement
5mm from bottom and up to handle
Apply tolerances
+/- 1,5mm
Capacity
Up to 40 products per minute
References
Akzo Nobel, Jotun, Flügger, PPG, CIN, Ostendorf, Hempel and more





Options

  • Format sets for each product size

  • Print on label

  • Handle raising mechanism for full wrap labelling

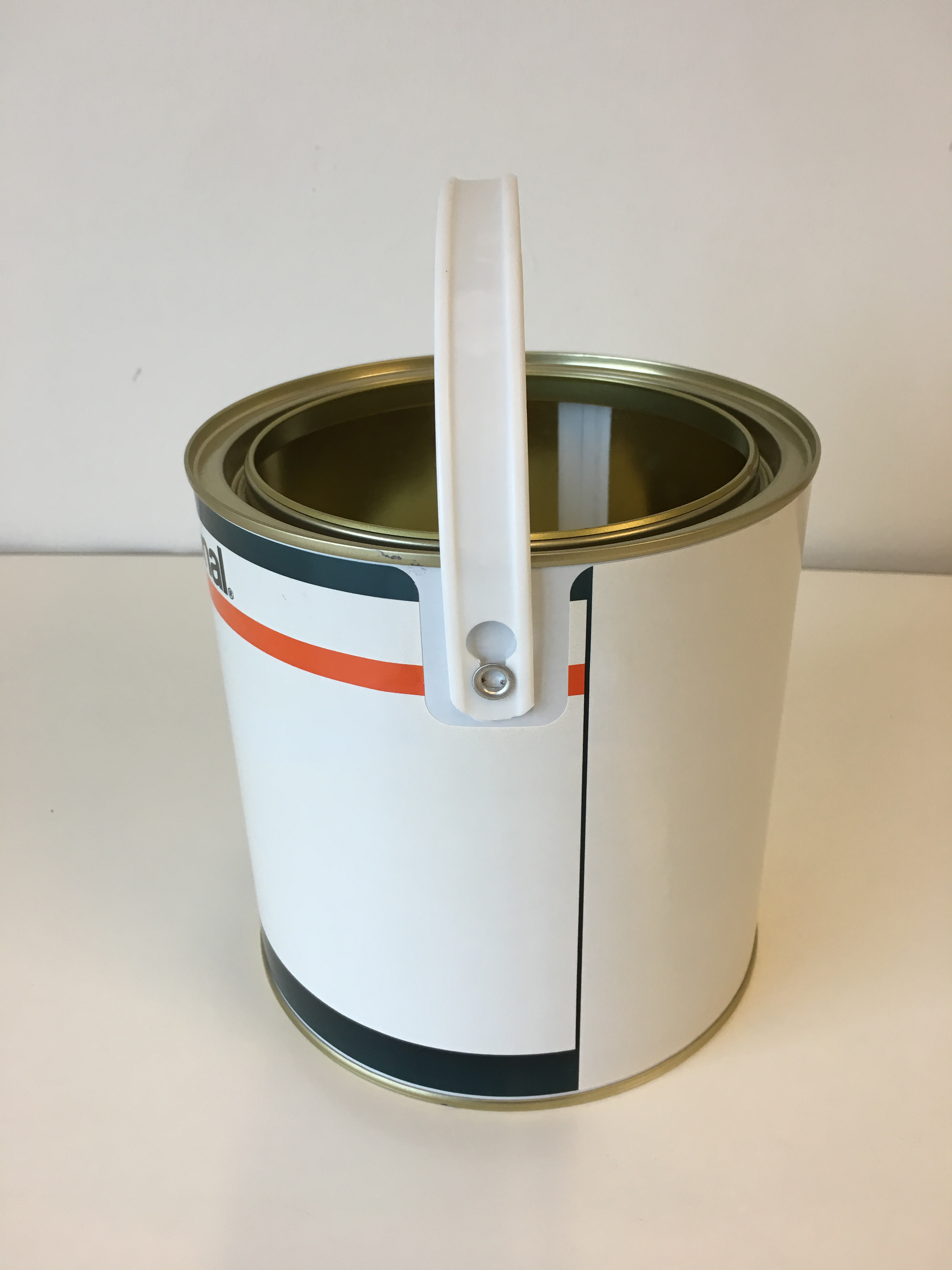

  • Full wrap labelling arround handle ears

  • Extra indexer + dispenser for applying preprinted barcode labels

  • Extra indexer + printer for in-line print and apply of barcode labels

  • Scanner check of readable barcode on product

  • Product orientation in relation to seam before labelling

  • Camera for applying label in relation to an image/logo on the can

  • Pre-indexer for higher output. When applying labels orientated to the seam
