Validation Documentation

Our approach


  • Risk-based validation (GAMP 5)
  • Early testing at FAT
  • Leveraging supplier testing
  • Lifecycle-driven validation

Full validation scope

DQ - FAT - SAT - IQ - OQ

Mechanical, functional & software

Complete documentation coverage

What you get

  • Validation Plan
  • RTM
  • FAT/SAT protocols
  • IQ/OQ execution (some may leverage from FAT/SAT)
  • Full documentation package

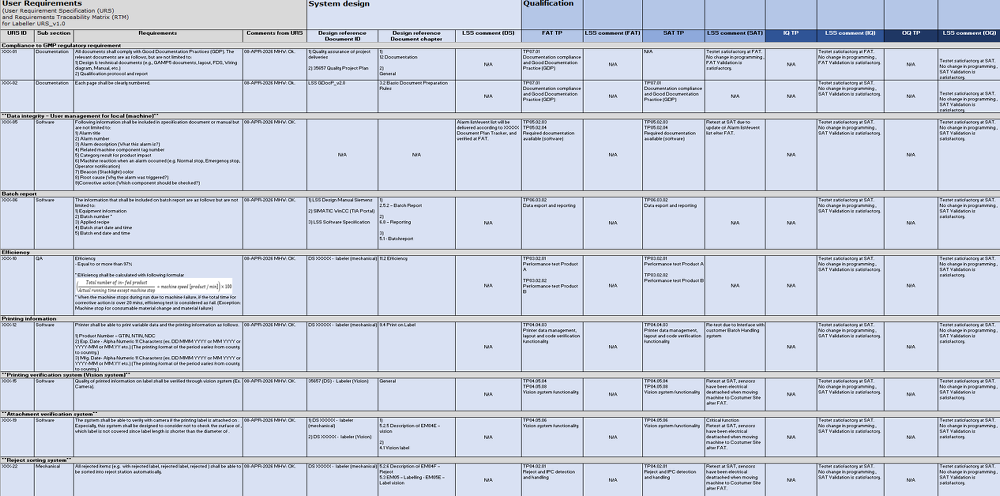

RTM example

Validation test examples

We validate directly against URS requirements, ensuring full traceability and compliance.
If IQ/OQ is included, test protocols are elevated to meet the following qualification standards.

Examples but not limited to:

  • PLC / HMI functionality
  • Vision systems & inspection
  • Reject and Eject scenarios
  • Alarms & workflows
  • E-stop/power failure and backup/restore
  • Interfaces & data flow

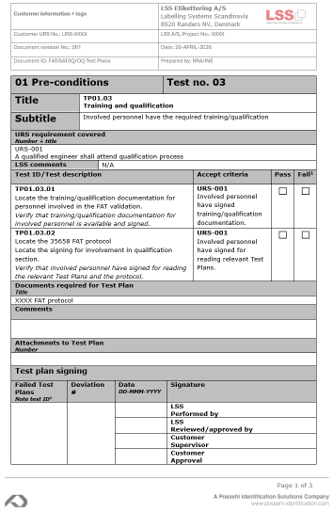

Testplan 1

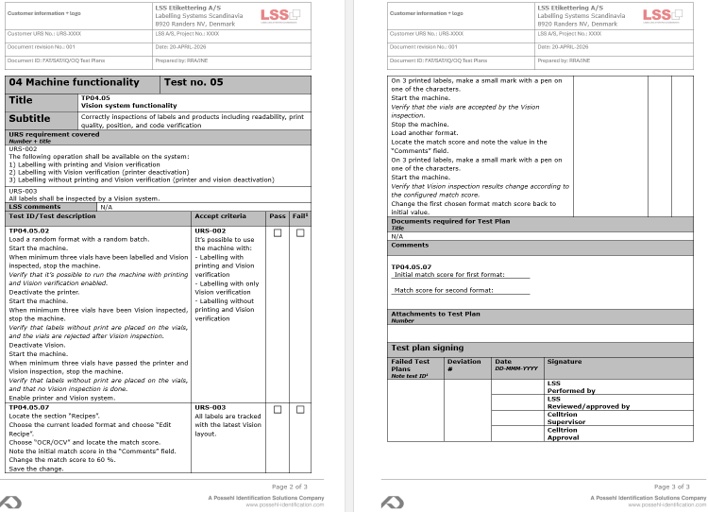

Testplan 2
;

Facts / Specifications

Products: Cartons in different sizes
Label is printed and placed on top and down side of the cartons
Capacity: 20-30 cartons per minute

Inspection functions:
Checkweigher:
Ensuring cartons are filled correctly
Vision Inspection of the following:
Carton orientation
Print on label , content and quality
Label placment at carton

Reject functions: Label and Carton


   Autodesk viewer

;

Facts / Specifications

Products: Cartons in different sizes
Closing and sealing of cartons in differet sizes
Capacity: Minimum of 25 cartons per minute

Inspection functions:
Checkweigher:
Ensuring cartons are filled correctly
Vision Inspection of the following:
Print on label , content and quality
Label placment at carton

Reject functions: Label and Carton


   Autodesk viewer
